Product Name : Deflected Jet Spray Nozzle

Deflected Jet Spray Nozzle

Nozzle Descriptions:

Deflected Jet Spray Nozzles feature a very powerful, narrow, flat spray pattern with a deflexion spray angle and sharply defined edges.

The uniform, high impact spray pattern is produced from the precision machined deflector surface.

The Deflected Jet Spray Nozzles are one-piece design with male thread inlet connection. A large and unobstructed flow passage minimizes clogging problems.

Different pipe connection set-up can be chose for pedestal.
Deflected Jet Spray Nozzles are manufactured from favorable and strong bars.


Design Features:

•   * Nozzle Materials: stainless steel and brass.
•    * Nozzle Structure: one-piece construction no internal parts.
•    * Spray Patterns: Narrow-angle flat fan spray.
•    * Spray angles: from 18 to 60 degree
•    * Pressure Range: 1 to 10 bar (2.3 to 115 L/min)
•    * Inlet connection Type: 1/8", 1/4", 3/8", 1/2" male thread.
•    * Also referred to as: Whirl Flat Jet Nozzle, Deflexion Nozzle, Narrow Flat Nozzle, High Pressure Flat Nozzle.

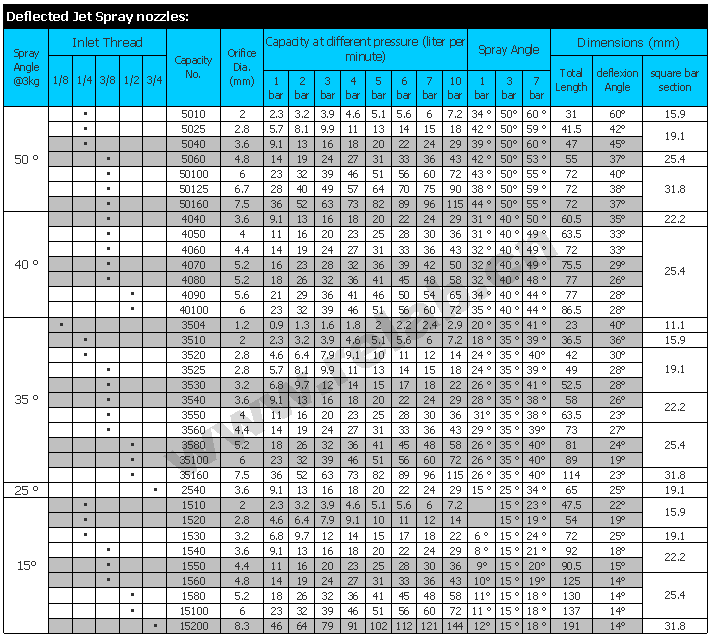

Deflected Jet Spray Nozzle Technical Parameters:

Deflected Jet Spray Nozzle Typical Applications:

•    * Washing of fruits; vegetables; crushed stones
•    * High pressure cleaning processes
•    * Felt washing in paper making machines
•    * Any other products moving on a conveyor
