Square Full Cone Nozzle:
- Nozzle Descriptions:
- Square Full Jet Nozzle designs a standard spray angle for general purpose. Various spray patterns are delivered in different pressure. The broad range of orifice diameter can be chose in the performance data table.
- Square Full Jet Nozzle features a full and solid cone pray pattern with a square impact area. Uniform spray distribution is dropped result from a unique vane design, large and unobstructed flow passage and superior spray control design.
- For a standard square full jet nozzle, it is suitable for a variety of washing and spraying applications in surface treatment, electronics, environmental protection, steel and car, etc.
- Design Features:
- * Nozzle Materials: 303,304, 316 stainless steel, brass, PP
- * Nozzle Structure: two-piece construction internal filter parts
- * Spray Patterns: full cone or solid cone spray
- * Spray angles: from 40 to 110 degree
- * Pressure Range: 0.2 to 10 bar (0.44 to 60 L/min) < dd> * Inlet connection Type: 1/8", 1/4", 3/8" and 1/2" female and male thread
- * Also referred to as: FullJet Nozzle, Full Cone Nozzle, Single-Fluid Nozzle, Solid Cone Spray Nozzle.

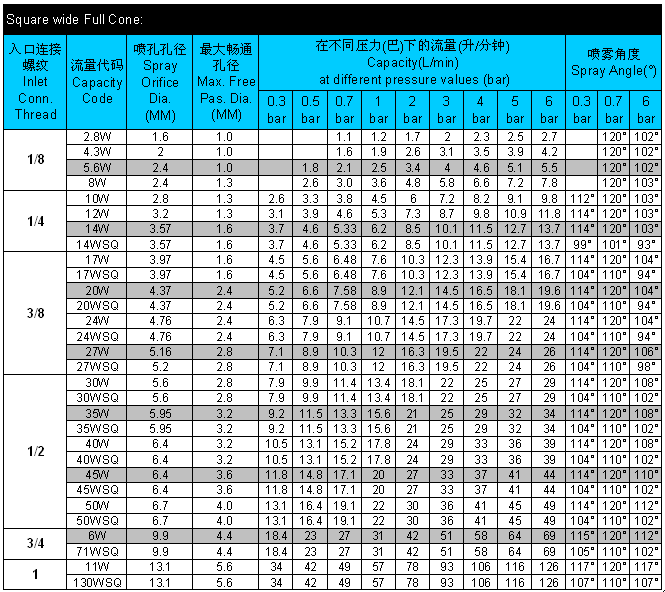

Square Full Cone Nozzle Technical Parameters:
Square Full Cone Nozzle Typical Applications:
Square Full Cone Nozzle Ordering Informations:
